Sello mecánico TB68 Reemplace el sello Aesseal W01, el sello Flowserve 168, el sello Roten 7K
- modelo
- TB68
propiedad
- Temperatura
- -40℃-200℃
- Velocidad
- ≦18m/s
- Presión
- ≦0.8MPA
- Material del anillo giratorio
- SUS304/SUS316/SIC/TC
- Material del anillo estacionario
- COCHE/SIC/TC
- Material de la junta tórica
- VIT/NBR/EPDM
- Resortes y piezas metálicas
- SUS304/SUS316
- Solicitud
- Agua limpia, aguas residuales, aceite
Evaluacion
Descripción

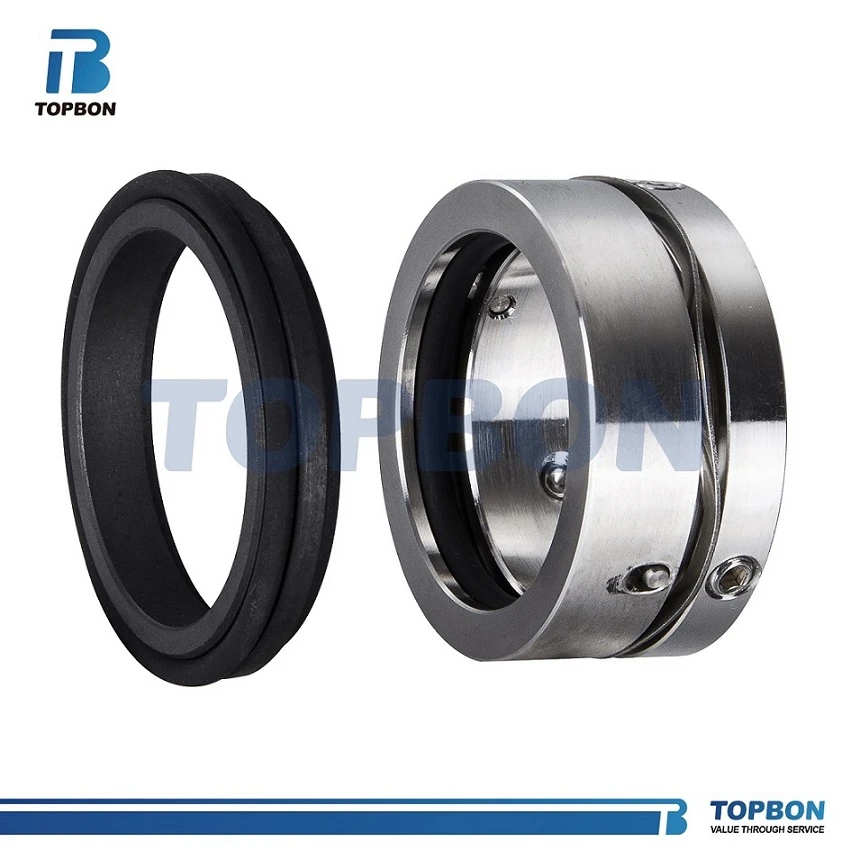

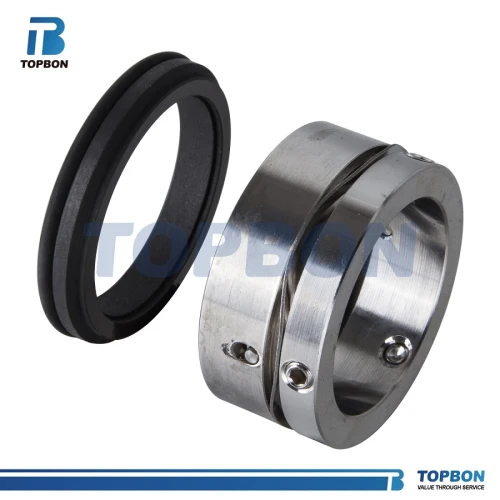

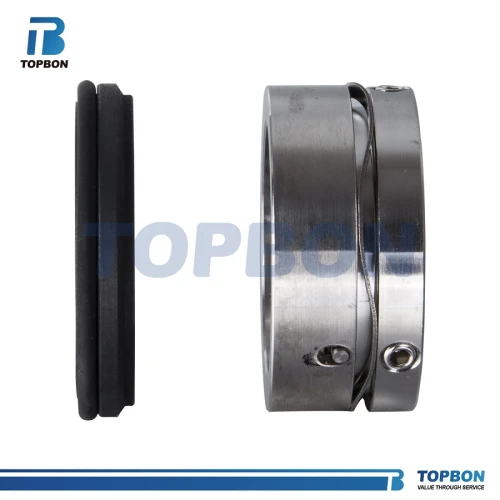

Sello mecánicoTB68
Reemplazo a:
Sello Aesseal W01
Sello flowserve 168
Latty T510
Sello Roten 7K
Detalles de producto
TAMAÑO
| Tamaño/ Métrico | D1 | D3 | L1 | L2 |
| 15.8 | 28,50 | 27.00 | 19.1 | 6.30 |
| 16.0 | 28,50 | 27.00 | 19.1 | 6.30 |
| 19.1 | 31,70 | 30.00 | 19.1 | 6.30 |
| 24.0 | 35.40 | 34.10 | 19.1 | 7.60 |
| 28.0 | 42.00 | 40.00 | 19.1 | 7.60 |
| 28.6 | 41.20 | 39,50 | 19.1 | 7.60 |
| 30.0 | 42,70 | 41.00 | 19.1 | 7.60 |
| 31,7 | 44.20 | 42,40 | 19.1 | 7.60 |
| 32.0 | 44,40 | 42,40 | 19.1 | 7.60 |
| 35.0 | 47,60 | 45,50 | 19.1 | 7.60 |
| 38.0 | 53,90 | 51,80 | 21.1 | 8.10 |
| 44.4 | 60.30 | 58.20 | 21.1 | 8.10 |
| 47,6 | 63,50 | 61,40 | 21.1 | 8.10 |
50.0 | 63,90 | 61,90 | 21.1 | 8.10 |
50,8 | 66,60 | 64,60 | 22.1 | 9.60 |
53,9 | 73.00 | 71.00 | 22.1 | 9.60 |
54.0 | 73,90 | 71.00 | 22.1 | 9.60 |
54,6 | 75.00 | 72.00 | 22.1 | 9.60 |
55.0 | 75.00 | 72.00 | 22.1 | 9.60 |
63.0 | 83.00 | 79,30 | 25,8 | 9.10 |
63,5 | 88,90 | 79,30 | 25,8 | 9.10 |
69,8 | 95.20 | 88,90 | 25,8 | 9.10 |
73.0 | 98,40 | 94.00 | 25,8 | 9.10 |
75.0 | 100.40 | 96.00 | 25,8 | 9.10 |
